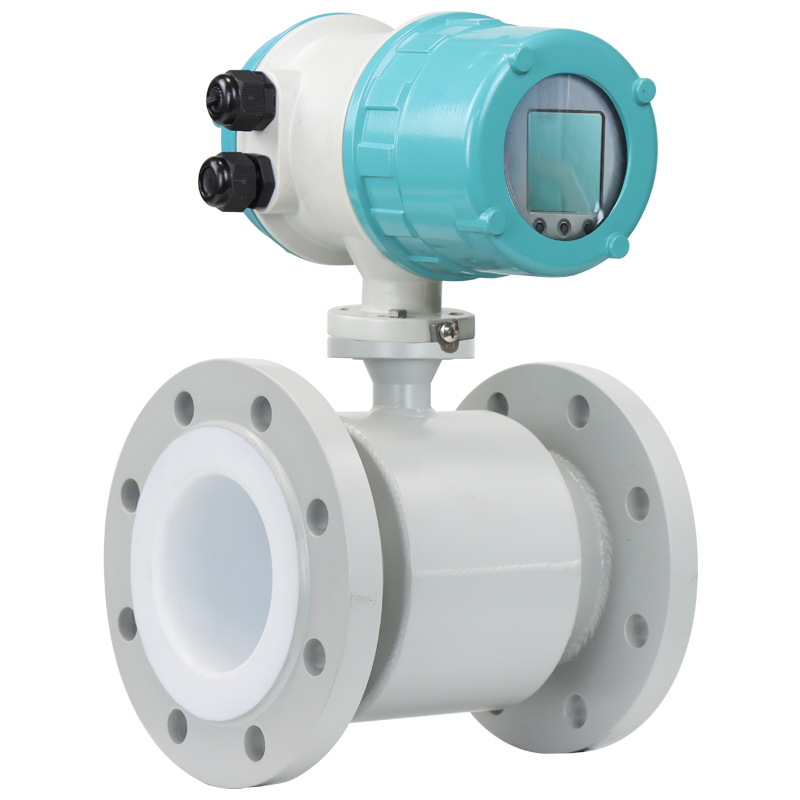

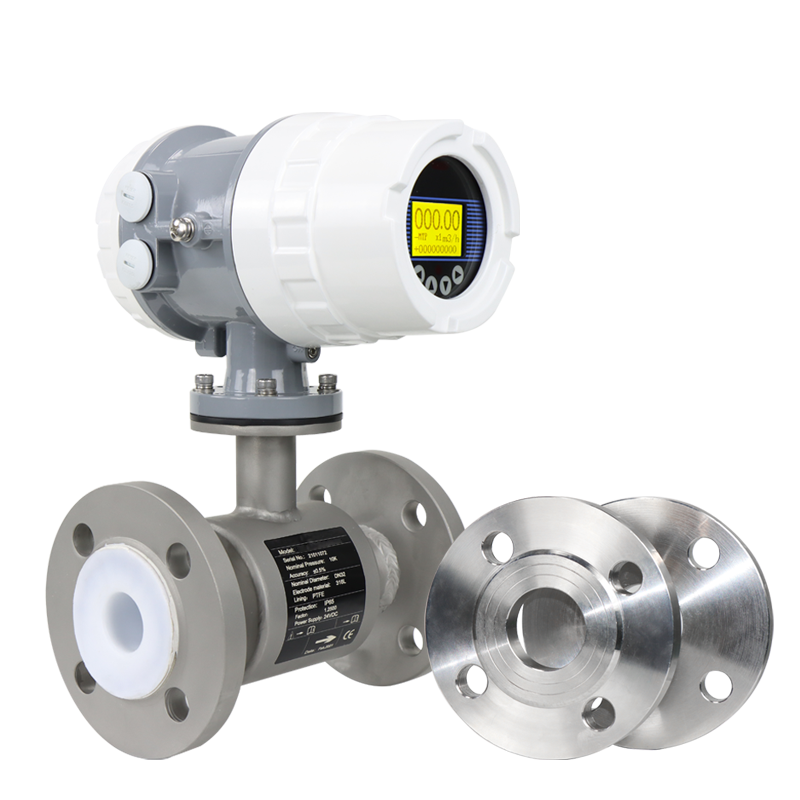

Slurry Type High Frequency Electromagnet Flow Meter

6~8 weeks

Higher Concentration of Solid Components on Raw Wast3 and Mining? Noise is common in process fluids containing solid particulates, and it can influence the measurement, our slurry magnetic flow meter adopts square wave excitation and 25Hz/30Hz high excitation, which can eliminate interfacerence between the sharp wave noise generated by solid particles, ensures accurate measurement of viscous medium.

MQ&T-LD magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

My Price: $0.00 ^+GST

Code:

If quantity required exceeds stock on hand, please contact us.

description
specifications

Wide range of nominal diameters (DN3~DN3000)
Independent of pressure, temperature, density and viscosity
No moving parts, maintenance-free
Automatic power failure recording function (optional)
Built-in grounding electrodes
Bi-directional flow measurement
High accuracy 0.2% available
Self-diagnosis function, empty pipe alarm, exciting alarm
Support data record / bluetooth / wireless communication

Size DN3-DN3000mm (1/8"-120")
Accuracy ±0.5% of reading at flow velocity ≥ 0.5m/s, ±0.2% optional at flow velocity ≥ 0.5m/s 0.1~15 m/s
Velocity: 0.15~15 m/s
Repeatability: ≤0.17%

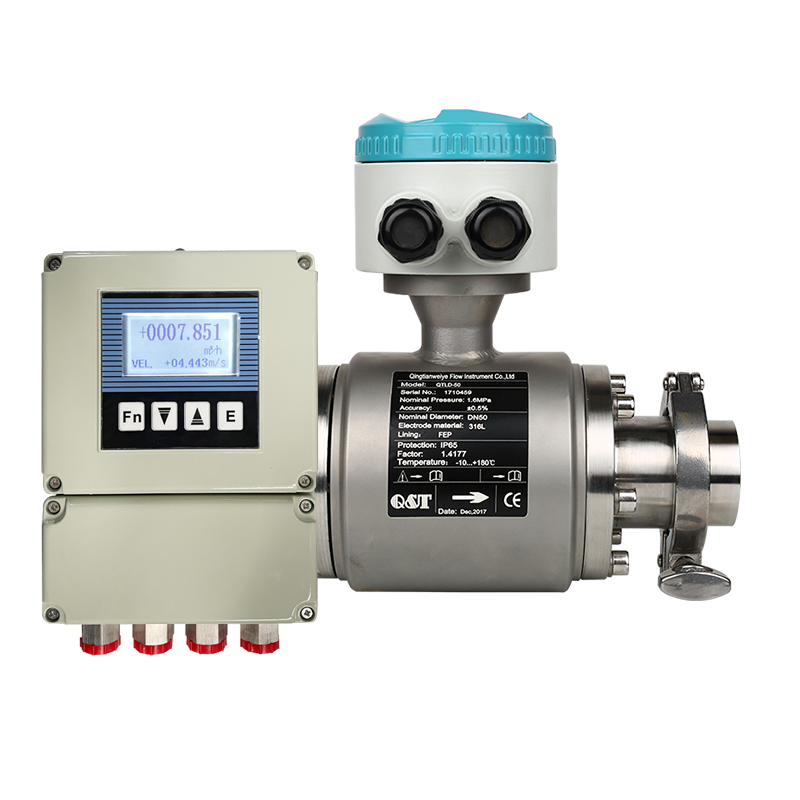

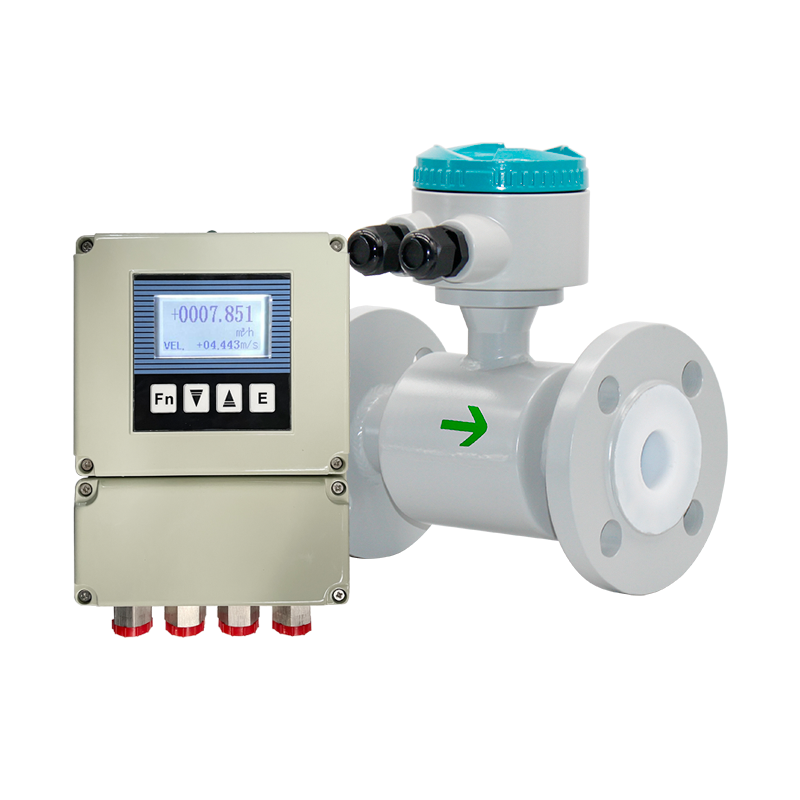

Structure: Compact / remote-sensor cable length: 10m standard, 100m max
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Protection Grade: Transmitter-IP65 standard, IP67 optional; Sensor-IP65 , IP68 (submersible, only available for remote type)
Power Supply: 85～250 VAC (50/60 Hz), 20～36 VDC; Power Consumption: <20W
Signal Output: Analog 4/20mA; Frequency Forward & reverse flow output with a frequency range of 1~5000Hz; Alarm Two isolated open collector transistor (OCT) outputs for alarms
Communication: RS485 MODBUS RTU standard, HART, GPRS, PROFIBUS optional
Display: LCD Display,128X128mm, three lines, 4 buttons, Instantaneous flow, total flow, velocity
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Totalizer: Three built-in totalizers: forward flow, reverse flow and net flow
Display Unit: L/s, L/m, L/h, m/s, m/m, m/h, UKG, USGgal/s gal/mgal/h kg/s kg/mkg/h t/s t/mt/h
Languge: English, Chinese
Ambient Temperature: -20°C~60°C
Fluid Temperature: Compact: -20°C~80°C, Remote: -20°C~120°C
Transmitter Material: Aluminium alloy with epoxy painting
Sensor Material: Measuring tube: default SS304; Flange & housing: carbon steel (standard), SS304 / SS316 optional
Electrode: SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinum-iridium optional
Liner Material: PTFE (-20°C~150°C, DN15-DN1600) ; FEP (-20°C~120°C, DN3-DN1800); PFA (-20°C~160°C, DN3-DN800); Polyurethane (-10°C~60°C, DN40-DN1600); Neoprene (-10°C~80°C, DN40-DN3000); Hard Rubber （-10°C~80°C, DN 40-DN3000; Ceramic (-20°C~180°C, DN15-DN200)
Normal Pressure: PN10 / PN16 / PN25 / PN40 (DIN & AS) ; 10K / 20K / 30 K (JIS) 150# / 300# / 600# (ANSI) : High pressure 42 MPa / ANSI 2500# can be customized; PN16 on Insertion, tri-clamp, wafer, thread
Process Connection: Flange Standard: DIN, ANSI, JIS, AS4087; Insertion, tri-clamp, wafer, thread
